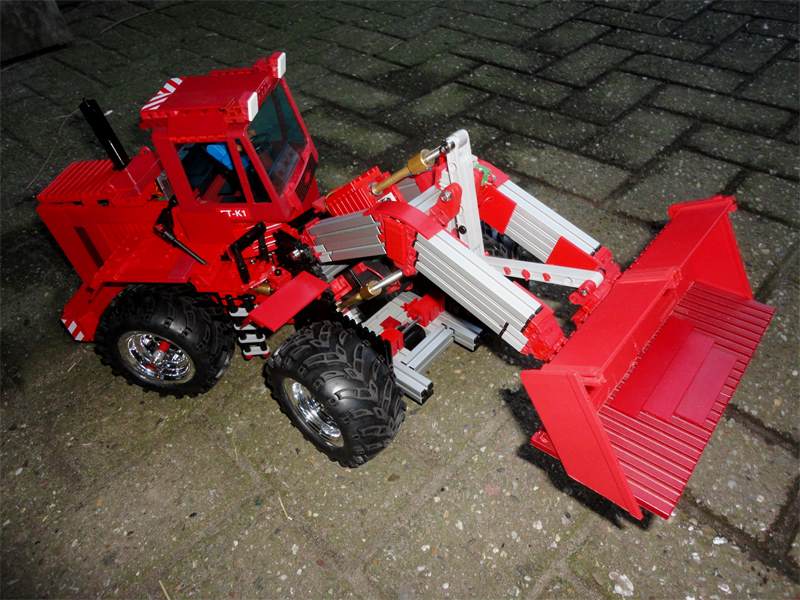

Caterpillar-950H-2.0 + Dreh-Zylinder -micro-Getriebemotoren -Antrieb Info

Konstruiert und fotografiert von Peter Damen (peterholland, Poederoyen NL).
Hochgeladen am 24.1.2015, 21:42 von peterholland.  9 / 16

Schaal 1 : 14

Interessante sehr kleine (10 x 12 x26mm) Getriebemotoren passend im FT-Raster gibt es bei :

https://iprototype.nl/products/robotics/servo-motors/micro-metalen-gearmotor-hp-100:1

http://www.pololu.com/product/2218

Overview

These tiny brushed DC gearmotors are intended for use at 6 V, though in general, these kinds of motors can run at voltages above and below this nominal voltage, so they should comfortably operate in the 3 - 9 V range (rotation can start at voltages as low as 0.5 V). Lower voltages might not be practical, and higher voltages could start negatively affecting the life of the motor. The micro metal gearmotors are available in a wide range of gear ratios-from 5:1 up to 1000:1-and offer a choice between three different motors: high-power (HP), medium-power (MP), and standard. With the exception of the 1000:1 gear ratio versions, all of the micro metal gearmotors have the same physical dimensions, so one version can be easily swapped for another if your design requirements change.

Ook interessant in 12V -uitvoering (levering vanuit Frankrijk) : http://www.robotshop.com/eu/en/12v-460rpm-20oz-in-micro-gearmotor.html

12 6 - 12 5:1 4900 RB-Sct-805 Servo City 12 6 - 12 10:1 2600 RB-Sct-553 Servo City 12 6 - 12 30:1 900 RB-Sct-749 Servo City 12 6 - 12 50:1 460 RB-Sct-773 Servo City 12 6 - 12 100:1 270 RB-Sct-722 Servo City 12 6 - 12 150:1 175 RB-Sct-171 Servo City 12 6 - 12 210:1 130 RB-Sct-810 Servo City 12 6 - 12 250:1 110 RB-Sct-697 Servo City 12 6 - 12 298:1 90 RB-Sct-169 Servo City
