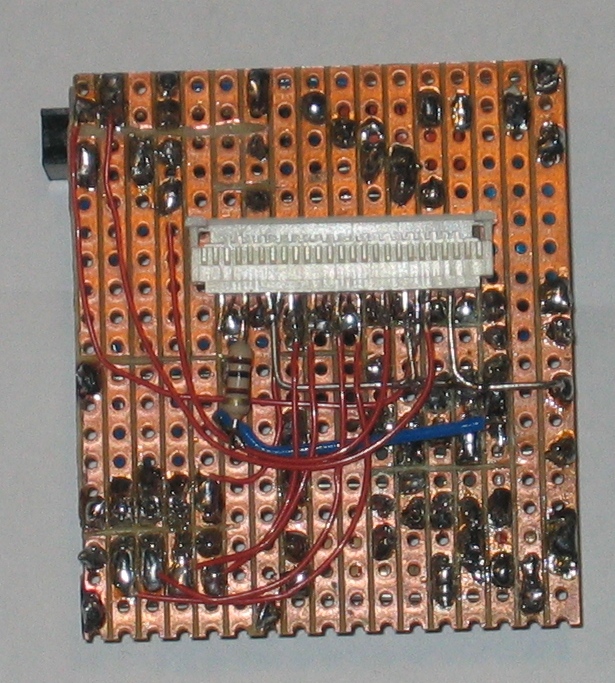

Solder side of the PCB

Konstruiert und fotografiert von Ad van der Weiden.
Hochgeladen am 23.1.2009, 08:29 von Ad.  16 / 20

The white component in the middle is the foil connector to the LCD. It has 2 rows and a funny pitch (the 11 pins of one row span 9 rows of the PCB), hence we need a lot of ‘Freiluftverdrahtung’.

Mr Smith (6.3.2009, 19:22:11)

The connections at the foil connector in the center are really confusing me. Do you have any circiut layer, as example with eagle?
