Controller board

Konstruiert und fotografiert von Rubem Pechansky.
Hochgeladen am 7.1.2018, 14:27 von rubem.  16 / 17

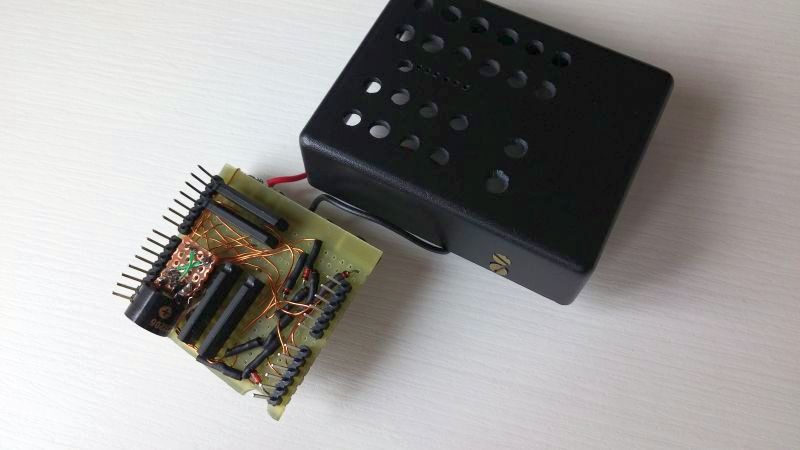

Detail of the controller board showing the motor drivers and the small buzzer board. The board is designed as an Arduino shield. The fischertechnik connectors are on the solder side (not visible in this picture).
