Controller board

Konstruiert und fotografiert von Rubem Pechansky.
Hochgeladen am 7.1.2018, 14:27 von rubem.  13 / 17

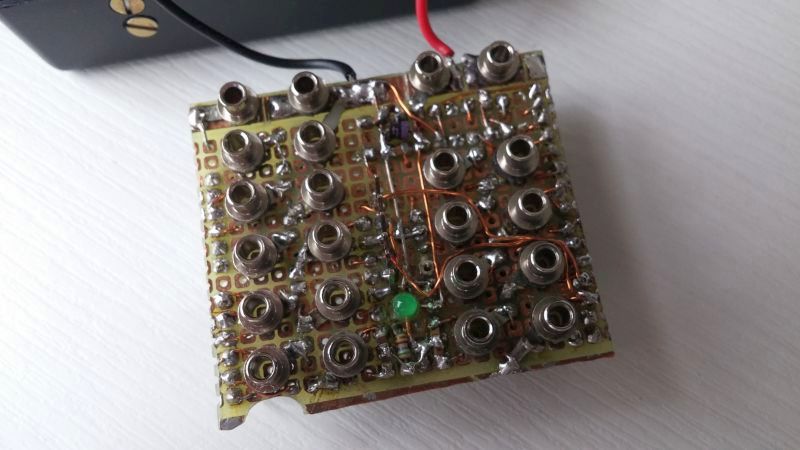

Close-up of the controller / connector board. The board was made with a standard perforated PCB. The connectors are made from inexpensive 2.5 mm jacks.
